Atlas-40
Cutting Machine

A machine with a lot of potential for all factories cutting products (e.g. labels) into stacks with regular paper cutting machines. The Atlas-40 is the most effective cutting and banding machine for rectangular formats.

On up to four stations simultaneously, it processes the cut strips into finished banded stacks quickly and with maximum precision.

To achieve the highest possible cutting precision, the strips are always properly guided and held down during the cutting process. Even after cutting, the individual stacks are held down until the banding process is completed. This way, the top labels can be prevented from shifting.

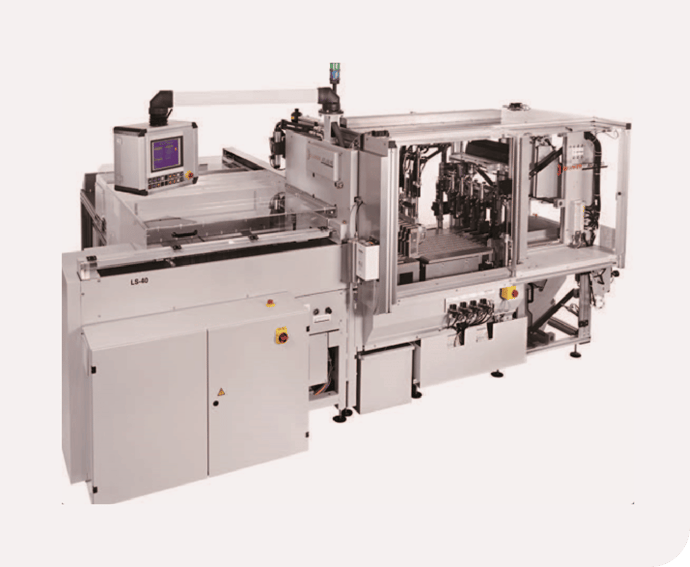

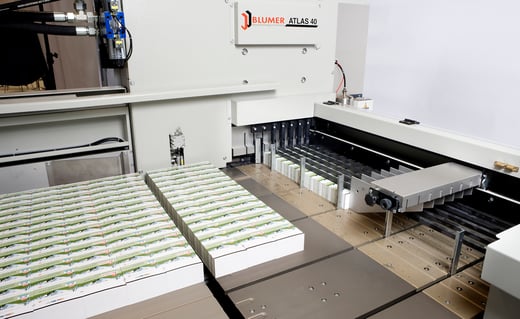

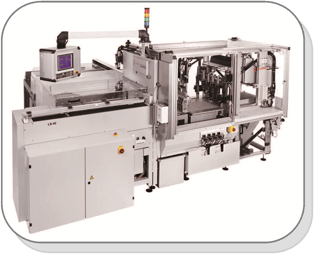

Blumer Atlas-40 cutting machine

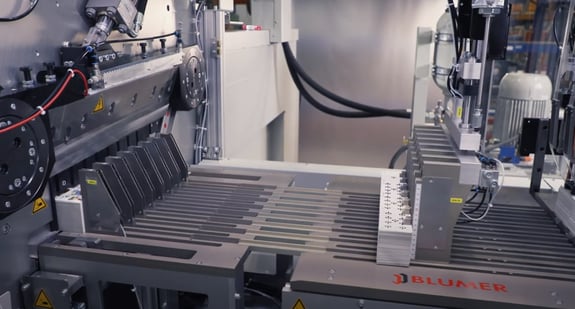

Blumer Atlas-40 Cutting Machine Video

Atlas-40 — Quality Characteristics

  • Improves cutting productivity- up to 300%
  • Fewer personnel required to operate
  • Paper or plastic materials
  • Can be used in-line with existing guillotine or independently
  • Can be extended by a DG-35 counter pressure die cutting machine
  • Individual or big logs of strips can be feed through
  • Ionized air prevents static charging of plasticized materials.
  • Buffering, separating, cutting and banding - all these work steps run fully automatically.

Atlas-40 — Functions

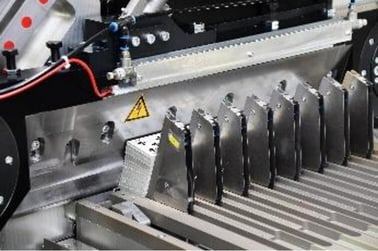

Blumer-Machine-Atlas-40-Cross-Cutting

Cross-cutting

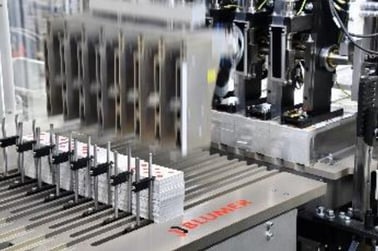

Blumer-Machine-Atlas-40-Stack-Transfer

Stack transfer

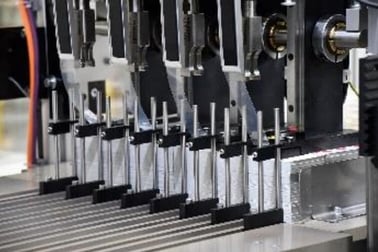

Blumer-Machine-Atlas-40-Banding

Banding

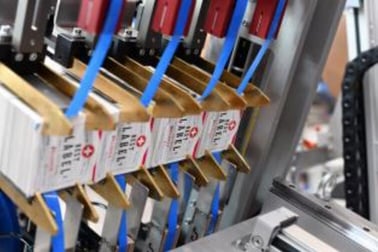

Blumer-Machine-Atlas-40--Maxi-Pack-Banding

Maxi-pack banding

Atlas-40 — Specifications

Strip Strip Length min. 350 / max. 1115mm
Strip Strip Width min. 67 / max. 426 mm
Strip Number of Strips / Cut 1 - 4 (total max width 426 mm)
Precut-Labels-Size Label Cut Size min. 20 x 67 mm / max. 245 x 436 mm
Stack Stack Height min. 40 mm / max. 120 mm
Time Strokes / Minute

7 - 11 multiplied with number if strips

Polyester-Foil-roll Banding Stations 4, bandwidth 25 mm
Polyester-Foil-roll Standard banding material Polyester foil rolls 25 mm/900 m
Optimize your processes for cutting rectangular labels and improve your productivity significantly with the ATLAS-40!
