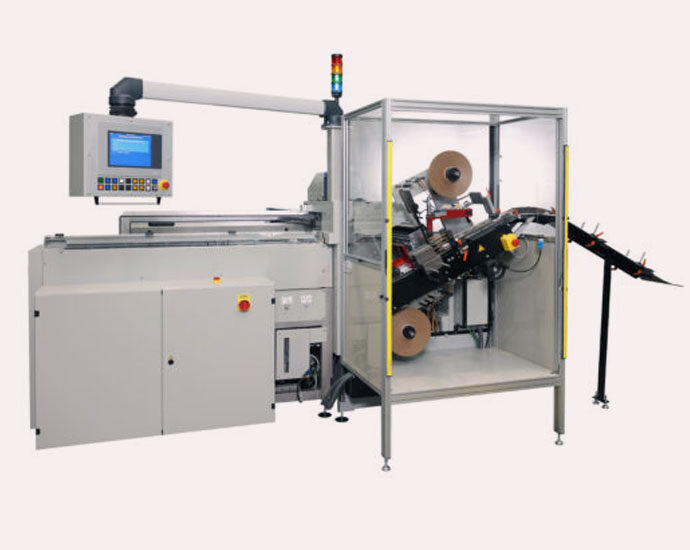

Atlas-1200 LS
Cutting & Tax Stamp Machine
Atlas-1200 LS cuts with the highest precision and bands the smallest Tax Marks up to Sticks. This machine meets the highest expectations in the efficient processing of labels and signs such as tax stamps for wine, tobacco, spirits, etc.
The ATLAS-1200 LS is used by many security printers for the production of tax stamps because of its efficient and very controlled process with the highest precision. Thanks to the (XXS-Label) option, even the smallest tax stamps can be cut and banded with the highest production reliability.
Beer-label producers appreciate the fact that the Atlas-1200 LS can be equipped with the option for the banding process of maxi packs.
Atlas-1200 LS — Functions

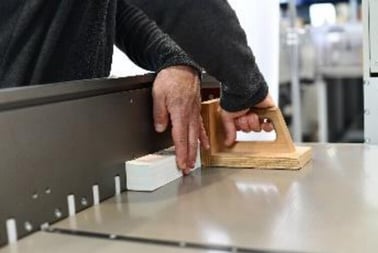

Strip infeed
Cross-cutting

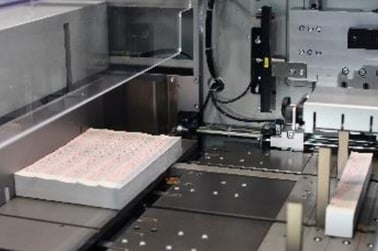

Separating

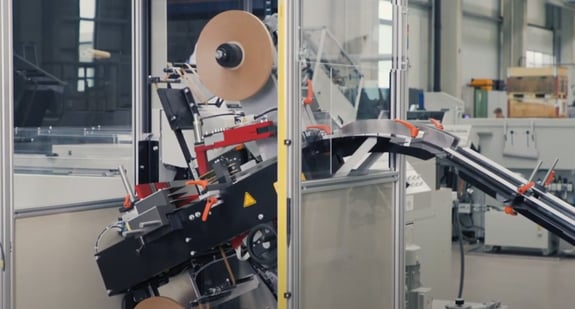

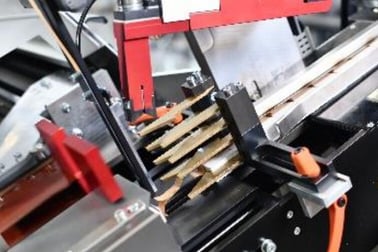

Banding
Atlas-1200 LS — Specifications
Strip Length
min. 350 mm / max. 1115 mm
Strip Width
min. 45 mm / max. 215 mm
Precut Label Size
min. 25 x 45 mm / max. 170 x 215 mm
Stack Height
min. 40 mm / max. 120 mm
Atlas-1200 LS — XS-Option — Specifications
Strip Length
min. 350 mm / max. 1115 mm
Strip Width
min. 30 mm / max. 205 mm
Precut Label Size
min. 11 x 30 mm / max. 170 x 205 mm
Stack Height
min. 40 mm / max. 100 mm
Atlas-1200 LS — XXS-Option — Specifications
Strip Length
min. 350 mm / max. 1115 mm
Strip Width
min. 28 mm / max. 205 mm
Precut Label Size
min. 10 x 28 mm / max. 170 x 205 mm
Stack Height
min. 40 mm / max. 100 mm
